Single Phase 10A Voltage Dips Generator

Product overview

Voltage dips/sags, short interruptions are caused by failures of the power grid and power facilities or sudden large changes in loads. In some cases, there will be two or more consecutive dips or interruptions. Voltage changes are caused by continuous changes in the loads connected to the grid. If the EUT cannot respond in time to changes in the power supply voltage, it may cause malfunctions. Voltage dips generators are used to evaluate the performance of electrical and electronic equipment when subjected to voltage dips/sags, short interruptions, and voltage changes. Products fully meet the requirements of standards IEC/EN 61000-4-11 and GB/T17626.11.

Data download

Product video

Product features

? User friendly 7” color touch panel display
? Support multi-language & facilitate users
? Built-in environment self-test program
? Programmable operation
? Pre-programmed IEC standard test levels, easy to operate
? RS232/USB interface, PC control operation & printable test report
?

Product parameters

Model

Voltage variation range

Voltage change duration

Switching phase

Built-in IEC standard test level

Fall/rise time

Voltage changes in the number of repeats

Interval cycle of voltage variation

Voltage dips mode

EUT capacity

Power supply

Ambient temperature
VDT S10

0~120%

1~9999 half cycle (HC)

0~359°synchronous, asynchronous, automatic

0%, 40%, 70%, 80%, 120%

1μs~5μs for abrupt changes

1~9999*9999

1~9999 half cycle (HC)

Freely set

1 phase, 10A (customer specific on demand)

AC 220V 50/60Hz

15℃ ~ 35℃

Product recommendation

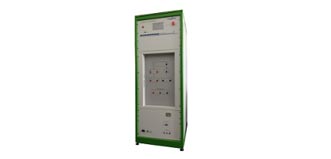

Impulse current generator sur 6ka

Model：SUR 6KA

The lightning surge generator sur 6ka is used to inspect the anti surge protection devices such as zinc oxide arrester valve piece, varistor, SPD, TVs tube, gas discharge tube, etc. for surge impact test. The product produces 8/20us surge pulse waveform, and the technical indicators of the waveform comply with the provisions of national standards and IEC standards.

Learn more

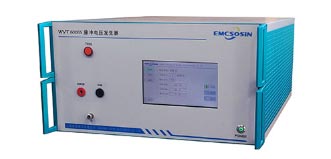

Pulse voltage generator WVT 60065

Model：WVT 60065

The impulse voltage tester is designed according to the requirements of surge test in the national standard "safety requirements for audio, video and similar electronic equipment" GB 8898-2001 (IEC 60065:1998/ul6500). Its performance conforms to GB 8898, IEC 60065 and other standards.

Learn more

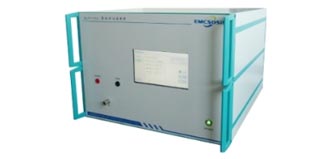

Single phase 20kV lightning surge generator sur S20
